Small Bathroom Remodeling Prescott, AZ

Small Bathroom, Stunning Result

The hall bathroom or guest bath is often the most-used room in a Prescott home. Visitors see it first. Family members use it every morning. Despite its size, it carries a disproportionate share of daily traffic — and daily frustration when the layout does not work. Cracked grout, outdated fixtures, a vanity that is too deep, and a door that swings into the toilet are all problems we hear about constantly from homeowners throughout the Prescott area.

Most small bathroom remodels fall short for the same reasons: the contractor chooses the wrong tile size, installs inadequate lighting, or ignores the storage plan entirely. A 4×6 bathroom with large-format floor tile in a dark grout, a single globe light, and no medicine cabinet will feel just as cramped after the remodel as before — sometimes more so. The work gets done, money gets spent, and the homeowner is left wondering why the room still feels small.

At Infinity Kitchen & Bath, we solve that before demo day. Every small bathroom project starts with an in-home measurement and a CAD layout so you can see exactly how the new shower, vanity, and fixtures will fit before we ever pick up a tool. That design-first approach is the same one we apply to every project in our full bathroom remodeling portfolio — and it is the difference between a bathroom that merely looks new and one that genuinely works better every day.

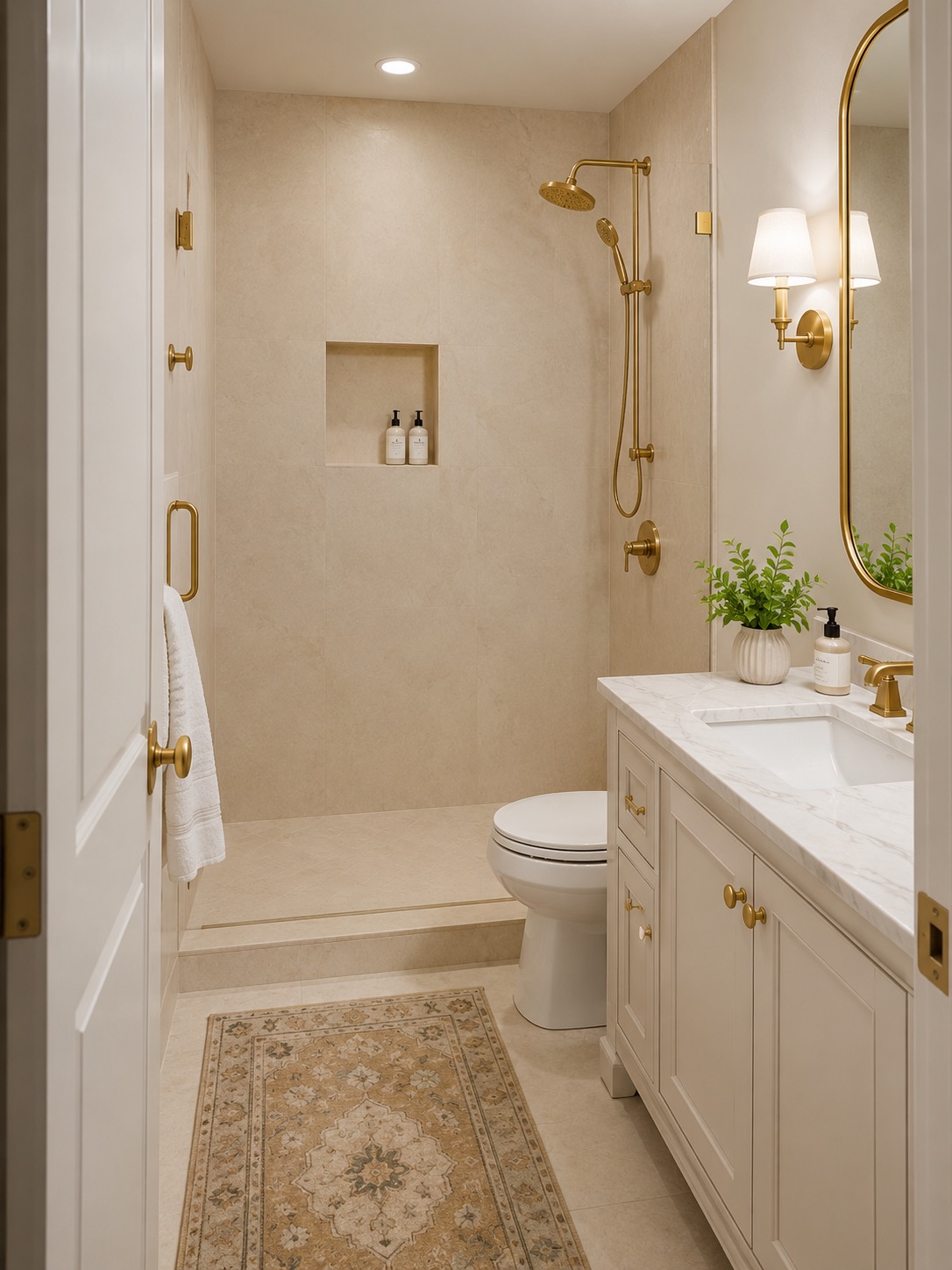

Small bathroom remodel by Infinity Kitchen and Bath in Prescott AZ

Small Bathroom Design Strategies That Work

Six proven techniques our design team uses on every compact bathroom project in Prescott, Prescott Valley, and Chino Valley.

Large Tile to Minimize Grout Lines

A 12×24 or 24×24 floor tile creates far fewer grout lines than standard 4×4 or 6×6 tiles. Fewer lines mean the eye reads the floor as one continuous plane rather than a busy grid — making the entire room feel bigger without touching the walls.

Floating Vanity

A wall-mounted vanity exposes the floor beneath it, creating a visual line that extends across the room. That unbroken floor plane signals more square footage to the eye. Pair it with an under-vanity night light and the effect is even more dramatic in the morning.

Walk-In Shower vs. Tub

Removing an unused tub in a secondary bathroom can reclaim 15–18 square feet of usable floor space. A curbless walk-in shower also eliminates the visual barrier of a tub deck, making the room feel open from the doorway. Learn more about our tub-to-shower conversion service.

Light Colors & Mirrors

A white or cream tile palette reflects light rather than absorbing it. Combine that with a large frameless mirror — ideally spanning the full width of the vanity wall — and the perceived size of the room can nearly double. We often pair warm-white LED vanity lighting to reinforce the effect.

Recessed Niches

A tile-lined shower niche built between wall studs gives you shampoo and soap storage without adding a single protruding shelf. When the niche tile matches the surrounding wall tile, it blends in and adds storage without visual clutter — a technique we use on nearly every small shower project.

Pocket Door or Barn Door

A standard 2’-6” swing door requires a 7–10 square foot swing arc that you can never put furniture, a hamper, or a towel rack in. Replacing it with a pocket door or a sliding barn door reclaims that entire area for usable floor space and dramatically improves the flow of the room.

Space-Saving Fixtures for Small Bathrooms

The right fixtures can recover inches you did not know you had. Here is how we approach toilet and vanity selection for compact Prescott bathrooms.

Compact & Wall-Hung Toilets

Standard toilets measure about 30 inches from the wall to the front of the bowl. Compact elongated models bring that down to 27–28 inches — saving two to three inches in a room where every inch matters. Over the life of the bathroom you will appreciate that extra clearance every time you reach around the toilet to clean behind it or step out of the shower.

Comfort height (17–19 inches to the seat) is easier on knees for most adults and is our most-requested toilet height. Standard height (15–16 inches) remains the right choice for households with children or homeowners with specific accessibility needs.

For the ultimate space gain, a wall-hung toilet conceals the tank inside the wall cavity, reducing the toilet footprint to as little as 22 inches from wall to front of bowl and freeing floor space for cleaning. These require a proper carrier frame installed during the remodel — something we plan for during the CAD layout phase.

Vanity Options for Tight Spaces

Standard vanities run 21 inches deep. When your bathroom is only 5 feet wide, that 21-inch vanity leaves just 39 inches of clear floor space — not enough to open a drawer and stand at the mirror comfortably. Narrow vanities at 18–19 inches deep solve that without sacrificing the sink bowl depth.

A pedestal sink offers the most open floor space and the lowest price point, but provides zero storage. A floating vanity with drawers gives you storage plus the visual spaciousness of an open floor. For the smallest powder rooms where every inch counts, a vessel sink mounted on a narrow 18-inch shelf or floating vanity keeps the counter footprint minimal while still looking finished and intentional.

Do not forget the medicine cabinet. Recessing a medicine cabinet into the wall above the vanity gives you a full mirror plus several inches of enclosed storage — without adding a single inch to the room. We routinely install medicine cabinets alongside custom bathroom vanities to maximize function in small spaces.

Tile Choices That Make Small Bathrooms Feel Larger

Tile selection in a small bathroom is not just aesthetic — it is a spatial design tool. The right tile size, orientation, and grout color can make a 5×8 bathroom feel like a 7×10 bathroom without moving a single wall.

Floor Tile Size & Orientation

Horizontal large-format tile laid on the floor in a landscape orientation visually elongates the room in its narrowest dimension. A 12×24 tile laid with the 24-inch dimension running across the short wall of a 5×8 bathroom makes the room read as wider than it is. A 24×24 tile works even better because there are essentially no grout lines from wall to wall.

On the shower walls, vertical subway tile — classic 3×6 or larger 4×12 tiles set in a running bond — draws the eye upward and raises the perceived ceiling height. Extending the same floor tile or a complementary wall tile from the floor continuously up into the shower surround, with no color break at the threshold, removes the visual interruption that makes small bathrooms feel choppy. Our team handles all custom tile work in-house; see our tile shower installation service for details.

Grout Color & Pattern Tips

Grout color is one of the most overlooked decisions in a small bathroom remodel. Dark grout on a light tile creates a strong grid pattern that your eye traces from one side of the room to the other — making every grout line an interruption. Matching the grout color closely to the tile color (within two or three shades) causes the lines to nearly disappear, and the entire surface reads as a unified plane of color and texture.

This is especially impactful on the floor. A large-format cream tile with ivory grout reads as a single continuous field. The same tile with dark charcoal grout looks like a checkerboard — and checkerboards are busy, not spacious.

Epoxy grout has a further advantage in small, high-humidity bathrooms: it resists staining, does not require sealing, and holds its original color for years. We use it on virtually every wet area we tile and recommend it for small bathroom floors where grout lines are closer together and see more cleaning traffic.

Our Small Bathroom Remodeling Process

Every small bathroom remodel at Infinity Kitchen & Bath follows a structured five-step process designed to eliminate surprises and deliver a finished result that functions as well as it looks.

In-Home Measurement & CAD Layout

We visit your home, measure the bathroom precisely, and build a CAD layout showing the proposed fixture placement, shower footprint, vanity size, and door swing. You see the plan before we touch a wall — so if the compact toilet needs to shift two inches or the niche needs to move to a different stud bay, we catch it at the design stage rather than mid-demo.

Fixture, Tile & Vanity Selection

With the layout confirmed, we guide you through fixture, tile, and vanity selections — providing samples and renderings so you can see how the choices will look together in your specific space. We source directly from our supplier network, which keeps lead times tight and pricing competitive.

Demo & Waterproofing

Demolition is contained and clean. Once the old fixtures and tile are out, we inspect the substrate for moisture damage — a critical step in older Prescott homes where previous remodels may have used inadequate waterproofing. We install a fully bonded waterproofing membrane in all wet areas before a single tile goes down.

Tile, Vanity & Shower Installation

Our tile setters work to the layout plan, maintaining consistent grout lines and checking level and plumb at every course. The vanity is installed and leveled, the shower system is set, and all rough plumbing connections are made before the walls close. We do not rush this stage — precision here determines how the finished bathroom looks for the next twenty years.

Fixtures, Hardware & Final Walkthrough

Toilet, faucet, shower valve trim, towel bars, mirror, and medicine cabinet are all installed and tested. We walk through the finished bathroom with you, demonstrate every fixture, and do not consider the project complete until you are fully satisfied. All work carries our standard warranty, and we are reachable after the job is done.

Small Bathroom Remodeling FAQ

How much does a small bathroom remodel cost in Prescott?

Most small bathroom remodels in the Prescott area range from $8,000 to $18,000 depending on scope. A cosmetic refresh — new tile, vanity, toilet, and fixtures — typically lands in the $8,000–$12,000 range. A full gut-and-rebuild with a tub-to-shower conversion, new waterproofing, and custom tile work generally runs $12,000–$18,000 or more. We provide detailed written estimates after the in-home measurement so you know exactly what is included before signing anything.

Is it worth remodeling a small bathroom?

Yes — and often more so than a master bath remodel. The hall or guest bathroom is typically the highest-traffic bathroom in a home and one of the first spaces buyers notice during a showing. A well-executed small bathroom remodel consistently returns strong value in the Prescott market, improving both daily livability and resale appeal. The key is smart material choices and a layout that genuinely functions better, not just one that looks different.

What's the best tile for a 5×8 bathroom?

For the floor, a 12×24 or 24×24 large-format tile in a light color with a closely matched grout is our top recommendation. Fewer grout lines and a unified color field make the room read as larger. For the shower walls or the main accent wall, vertical 4×12 subway tile or a large-format 12×24 wall tile in a light color with a vertical installation draws the eye up and raises the perceived ceiling height. Avoid small mosaic tiles on large floor areas — they create a busy grid that visually shrinks the room.

Should I replace my tub with a shower in a small bathroom?

In most cases, yes — if it is not your home's only tub. A standard alcove tub occupies a 30×60 inch footprint plus the surrounding deck, accounting for 15–18 square feet of usable floor area. Converting that to a curbless walk-in shower opens the room dramatically and eliminates the visual bulk of the tub deck. If your home has a second bathroom with a tub, removing the tub from the small bath is a practical and high-value upgrade. Visit our tub-to-shower conversion page for more detail.

How long does a small bathroom remodel take?

Most small bathroom remodels take 5–10 business days of active work once materials arrive. A cosmetic refresh with no plumbing relocation can be done in five to six days. A full gut-and-rebuild with a tub-to-shower conversion and custom tile work typically runs 8–12 business days. Material lead times vary, so we coordinate deliveries in advance so that work starts only when everything needed is on-site — no day-long waits for a missing fixture mid-project.
